Stables
Host is developing proposals for one of Wimbledon Village’s most interesting sites.

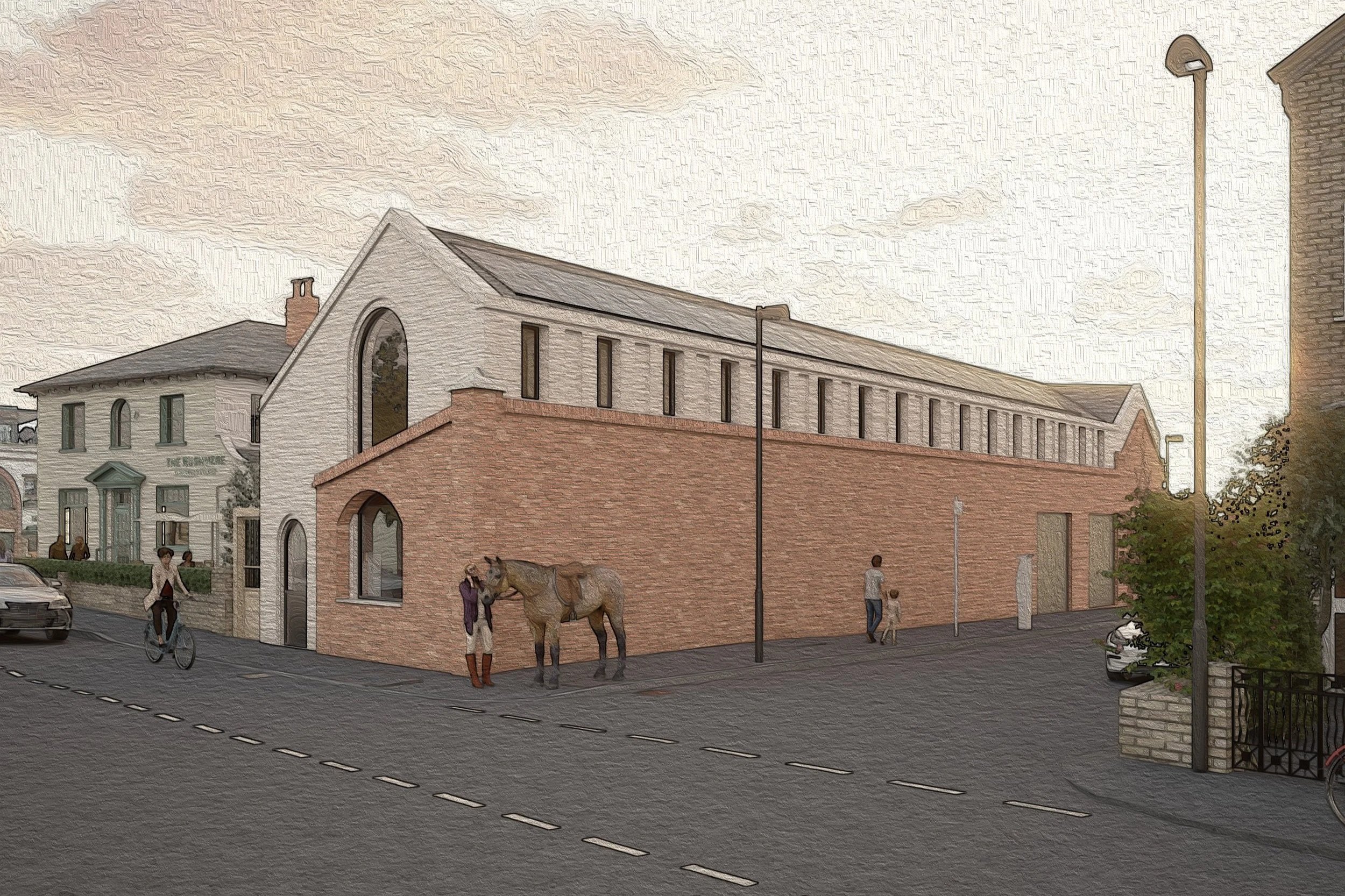

An historic stables building occupies a prominent corner on one of the main routes into the village. The site lies within the Wimbledon West Conservation Area, with both the stables and neighbouring pub locally listed.
The site originally had planning permission for a three-storey development with a smaller stable facility, however after a detailed review, this design was found to be unworkable. Our client was also focused on maximising the stable space, dedicating the entire ground floor footprint to this purpose.
To achieve this brief, we worked with Devise Engineers to develop a hybrid timber and steel structure that created an external 'undercroft' at ground floor while providing a spacious commercial space at first floor. Above this, engineered timber beams support the asymmetric pitched roof arrangement.
Only the stair and lift core 'lands' and connects the commercial unit above to the ground floor, maintaining a clear division between the stable and commercial functions. By pulling the upper floor away from the site boundary, light and fresh air is allowed down into the stable spaces ensuring a healthy environment for the occupants and users.
The project received strong local support at planning and was approved under delegated powers by Merton. A key factor in securing this support was the retention of the perimeter brick wall, which forms the boundary to the public realm. This wall will be refurbished and rebuilt where structurally necessary.
The stables have been carefully planned to provide generous space for the horses, along with ample storage for equipment, feed, and waste management.
The stables will provide accommodation for up to six horses and also includes a small paddock area which is to be used to provide equine assisted therapy on the site. There is a caretakers flat on the site to ensure the horses can be cared for at all times. Above the stables, at First Floor will be a small commercial unit with vaulted ceilings within the pitched roof void.
